EDK2378 Quickstart Guide

3

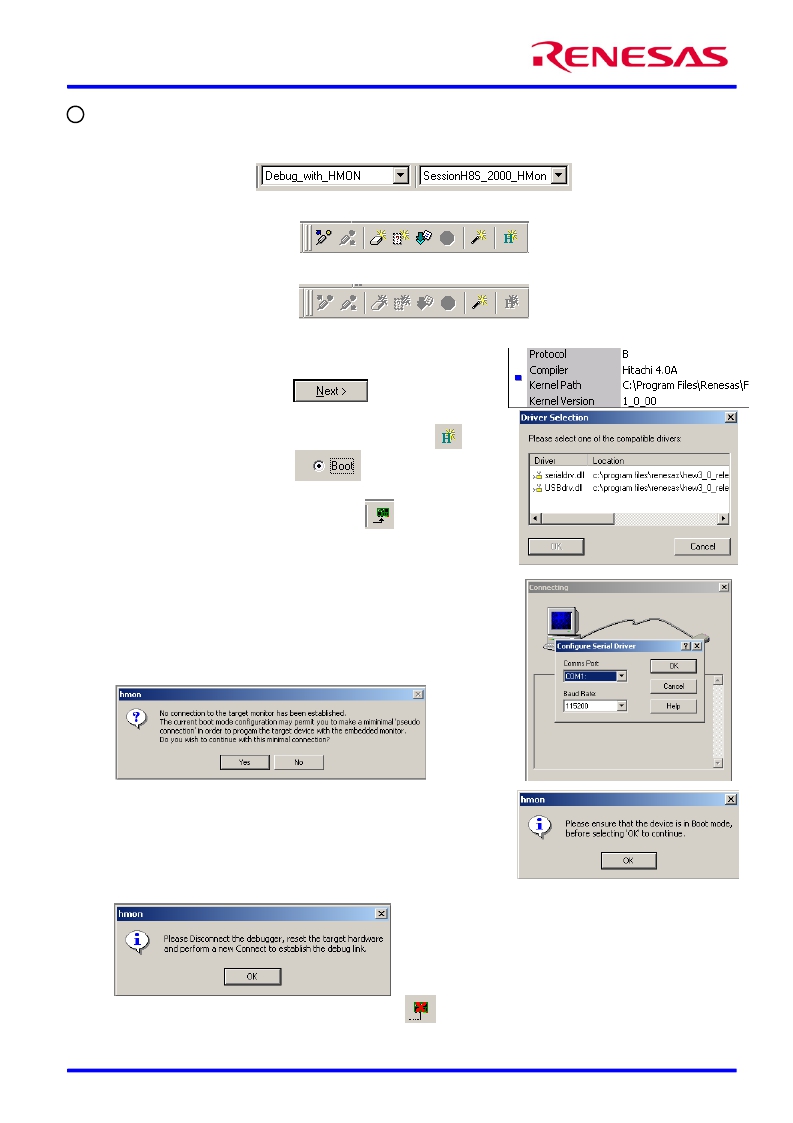

3 Programming the Board

1) Ensure that the EDK is connected to COM1, and power is applied.

2) Change to the debug session by choosing “ SessionH8S_2000_HMon ” from the drop down session menu.

3) If prompted to save session, click “ No ”.

4) If the Flash Control Bar is not greyed out (as below), then FDT is configured. Go to step 7.

5) If the FLASH control bar is greyed out in this mode, with only the magic wand visible, then the FDT settings for the

board need to be set up. The FDT configuration wizard will appear. Follow steps below to setup FDT.

a.

b.

c.

Click on the wand to start the wizard. (It may start automatically)

Select your device from the drop down menu.

Click on the Kernels for your EDK. These are denoted by a

.EDK after the version.

d.

Click the “ Next ” button

.

6) Choose “ Save Session ”, from the “ File ” menu.

7) Click on the “ HMON FLASH Download Settings ” button

.

8) Click on the “ Boot ” radio button,

and click “ OK ”.

9) Choose “ Save Session ”, from the “ File ” menu.

10) To connect to the EDK, press the connect icon

.

a.

b.

c.

d.

If prompted for the “ Target Configuration ”, select the file

from the list matching your EDK, and click “ OK ”.

If presented with the “ Driver Selection ” menu (above right),

click on “ serialdrv.dll ” and then “ OK ”.

If presented with the “ Configure Serial Driver ” menu

(right), click on “Cancel”. There is no monitor on the board

for HEW to connect to, and so Hew will ask to make a

minimal connection. . Choose “ Yes ”, as this will allow you to

download the file in boot mode to the device.

If presented with the “CPU Mode” window, click “OK”.

11) Right click on the “ .abs ” file in the “ Download Module ” section, and

choose “ Download Module ”.

12) When the “ Please ensure that the device is in Boot mode ”, (right),

dialogue prompts you, push the BOOT mode button on the EDK, and

click “ OK ” in the dialogue.

13) Following completion of programming, a dialogue will appear

prompting you to reset the EDK (below). Press the RESET button on

the EDK. The BOOT LED will go OFF, Click “ OK ” on the dialogue.

14) Press the disconnect icon to disconnect from the EDK

Renesas Technology Europe Ltd.

.

D004886_11_v02
